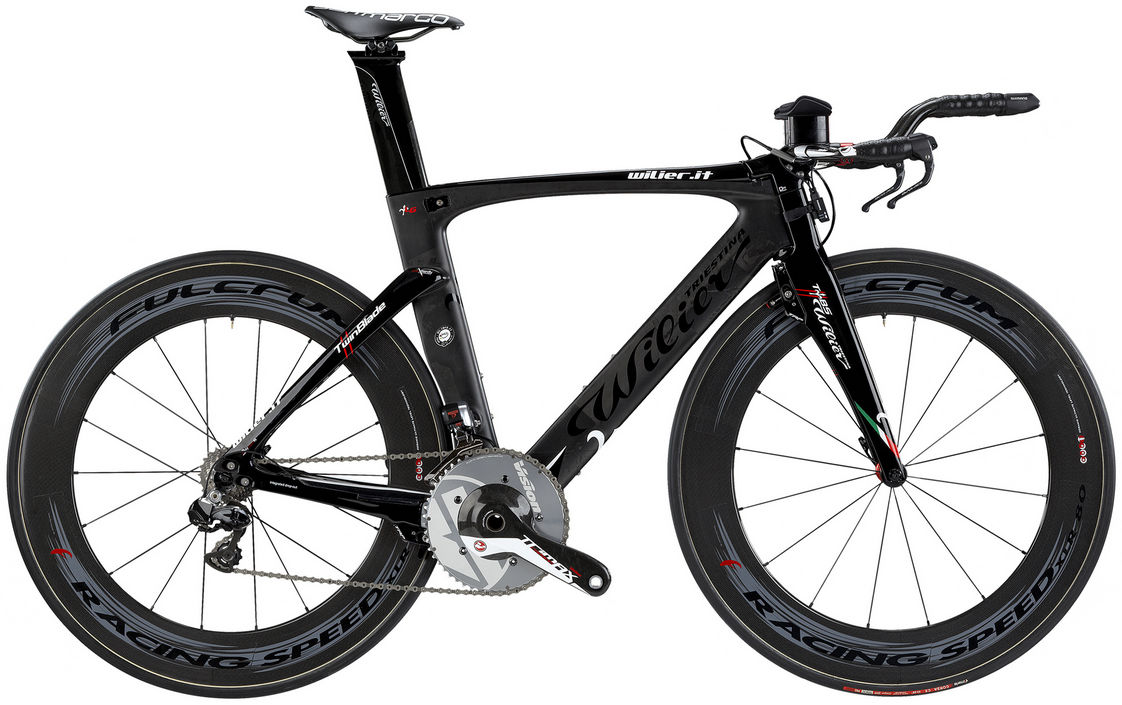

2014 Wilier Twinblade geometry
Full frame geometry for the 2014 Wilier Twinblade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 494 | 390 | 76 | 72 | 88 | 513 | 509 | 68 | 575 | 400 | 965 | 43 | 63 |
| M | 514 | 407 | 76 | 72.5 | 107 | 535 | 529 | 68 | 594 | 405 | 989 | 43 | 60 |
| L | 534 | 424 | 76 | 72.5 | 128 | 557 | 550 | 68 | 617 | 405 | 1012 | 43 | 60 |
| XL | 554 | 441 | 76 | 72.5 | 149 | 579 | 570 | 68 | 640 | 405 | 1036 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
