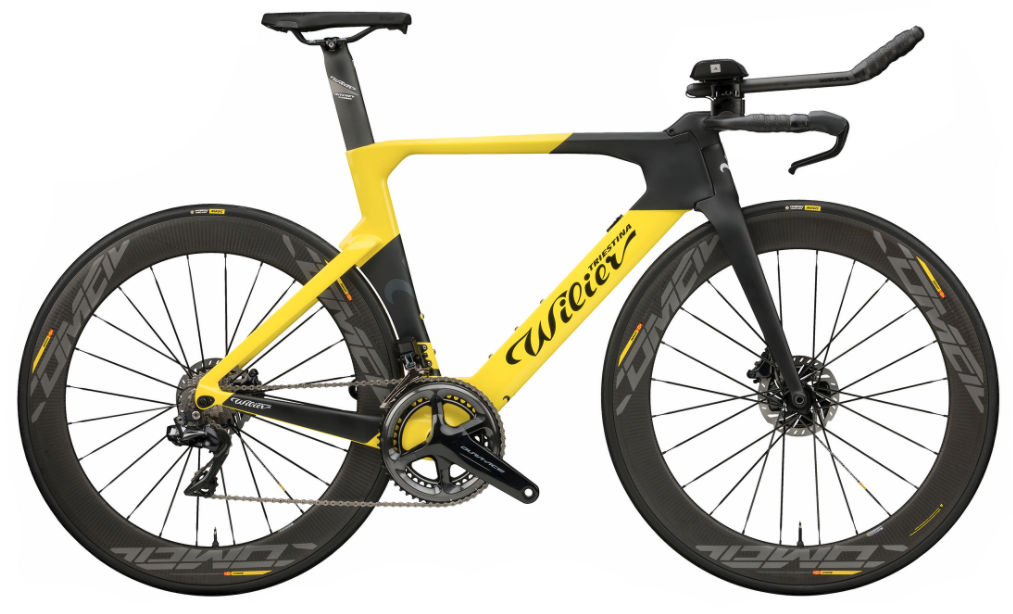

2018 Wilier Turbine geometry
Full frame geometry for the 2018 Wilier Turbine, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XSS | 487 | 397 | 76 | 72.5 | 82 | 520 | 480 | 405 |
| M | 521 | 418 | 76 | 72.5 | 118 | 549 | 520 | 405 |
| L/XL | 555 | 439 | 76 | 72.5 | 153 | 579 | 560 | 405 |
All measurements in millimetres unless marked (°) for angles.
