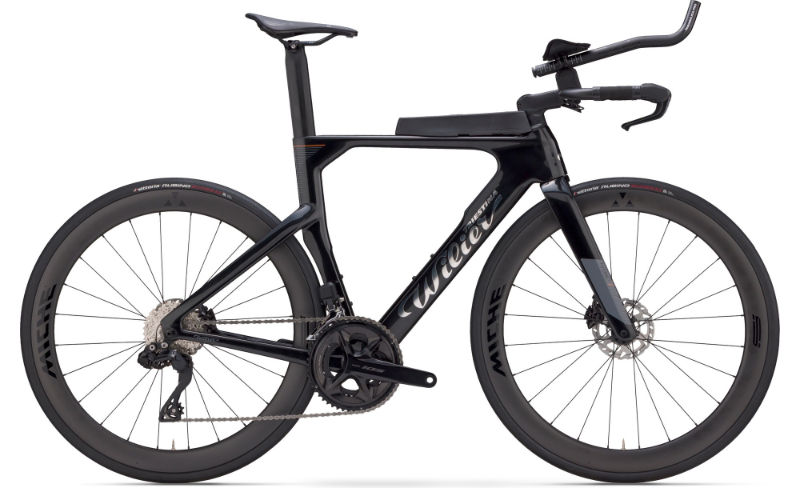

2025 Wilier Turbine SL geometry
Full frame geometry for the 2025 Wilier Turbine SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|
| XS/S | 490 | 385 | 78.5 | 71 | 87 | 410 | 980 |
| M | 522 | 405 | 79.5 | 72 | 117 | 410 | 1002 |
| L/XL | 554 | 425 | 80.2 | 72 | 151 | 410 | 1032 |
All measurements in millimetres unless marked (°) for angles.
