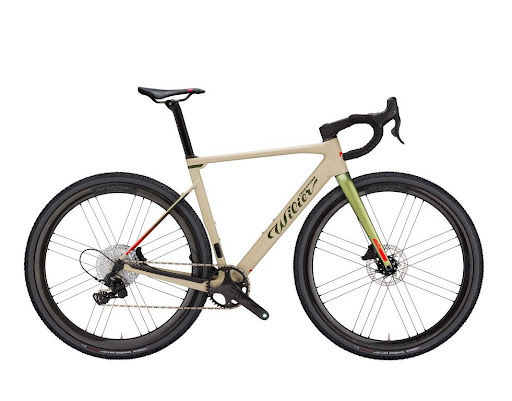

2022 Wilier Rave SLR geometry
Full frame geometry for the 2022 Wilier Rave SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 513 | 370 | 75 | 70 | 98 | 510 | 450 | 421 | 997 |
| S | 532 | 377 | 74.5 | 70 | 118 | 527 | 480 | 422 | 1012 |
| M | 551 | 384 | 74 | 71 | 134 | 545 | 500 | 423 | 1017 |
| L | 570 | 391 | 73.5 | 71 | 154 | 561 | 520 | 423 | 1031 |
| XL | 589 | 398 | 73 | 71.5 | 172 | 579 | 540 | 425 | 1041 |
| XXL | 608 | 405 | 72.5 | 72 | 190 | 597 | 560 | 427 | 1051 |
All measurements in millimetres unless marked (°) for angles.
