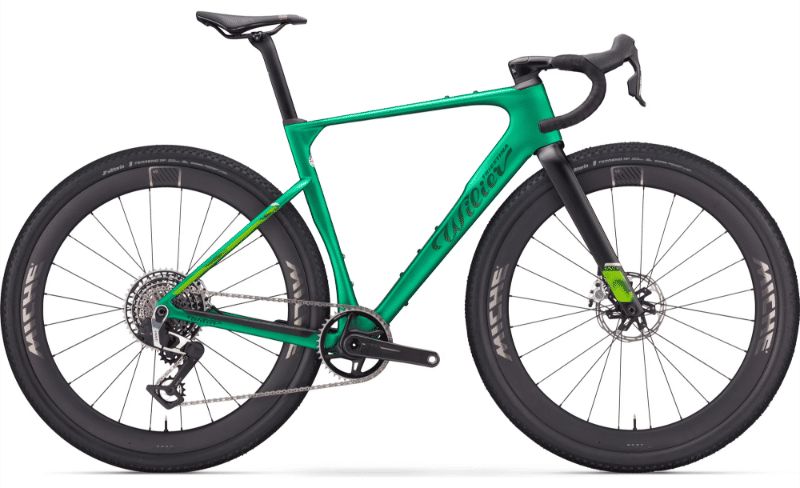

2026 Wilier Rave SLR ID2 geometry
Full frame geometry for the 2026 Wilier Rave SLR ID2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 532 | 375 | 75.5 | 69.2 | 107 | 516 | 450 | 419 | 1014 |
| S | 546 | 381 | 74.7 | 70 | 118 | 532 | 480 | 419 | 1017 |
| M | 561 | 387 | 74 | 70.8 | 131 | 549 | 500 | 421 | 1022 |
| L | 579 | 393 | 73.5 | 71.2 | 148 | 566 | 520 | 421 | 1031 |
| XL | 597 | 400 | 73 | 71.6 | 166 | 583 | 540 | 423 | 1042 |
| XXL | 617 | 408 | 73 | 72 | 185 | 597 | 560 | 423 | 1052 |
All measurements in millimetres unless marked (°) for angles.
