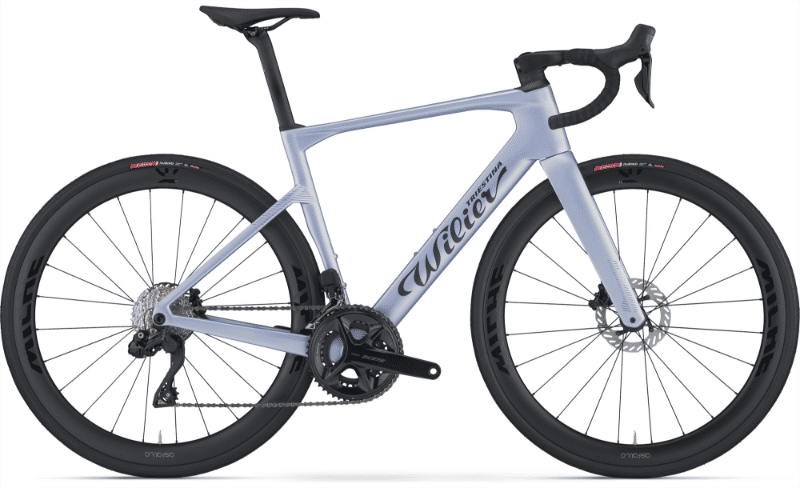

2026 Wilier Rapida geometry
Full frame geometry for the 2026 Wilier Rapida, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 372 | 75.5 | 70.5 | 108 | 509 | 430 | 732 | 410 | 981 | 50 |
| S | 538 | 378 | 75 | 71.3 | 125 | 524 | 460 | 758 | 410 | 986 | 50 |
| M | 556 | 384.5 | 74 | 72 | 143 | 545 | 490 | 782 | 412 | 994 | 50 |
| L | 574 | 390 | 74 | 72 | 162 | 556 | 520 | 808 | 412 | 1006 | 50 |
| XL | 592 | 396 | 73 | 72 | 183 | 578 | 550 | 832 | 414 | 1021 | 50 |
| XXL | 610 | 402 | 73 | 72 | 202 | 589 | 580 | 856 | 414 | 1033 | 50 |
All measurements in millimetres unless marked (°) for angles.
