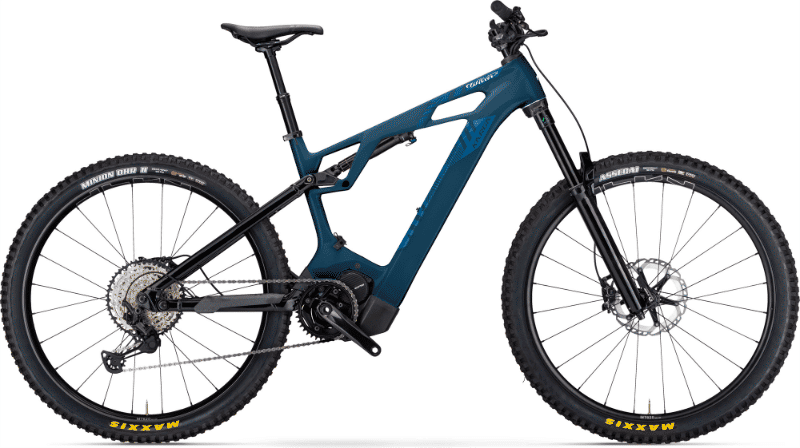

2026 Wilier Karga geometry
Full frame geometry for the 2026 Wilier Karga, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 620 | 430 | 76.5 | 64.5 | 104 | 585 | 420 | 450 | 1213 |
| M | 627 | 455 | 76.5 | 64.5 | 112 | 612 | 440 | 450 | 1241 |
| L | 634 | 480 | 76.5 | 64.5 | 120 | 639 | 460 | 450 | 1269 |
| XL | 641 | 505 | 76.5 | 64.5 | 128 | 665 | 480 | 450 | 1298 |
All measurements in millimetres unless marked (°) for angles.
