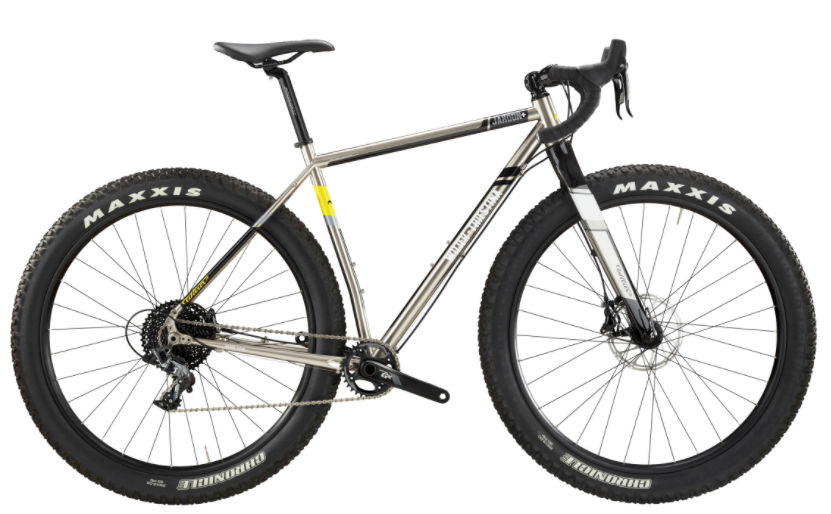

2018 Wilier Jaroon Plus geometry
Full frame geometry for the 2018 Wilier Jaroon Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 612 | 375 | 74.5 | 69 | 105 | 545 | 400 | 449 |
| M | 624 | 382 | 74 | 69.5 | 115 | 561 | 440 | 449 |
| L | 636 | 389 | 73.5 | 70 | 125 | 577 | 480 | 449 |
| XL | 650 | 396 | 73 | 70 | 140 | 595 | 520 | 449 |
All measurements in millimetres unless marked (°) for angles.
