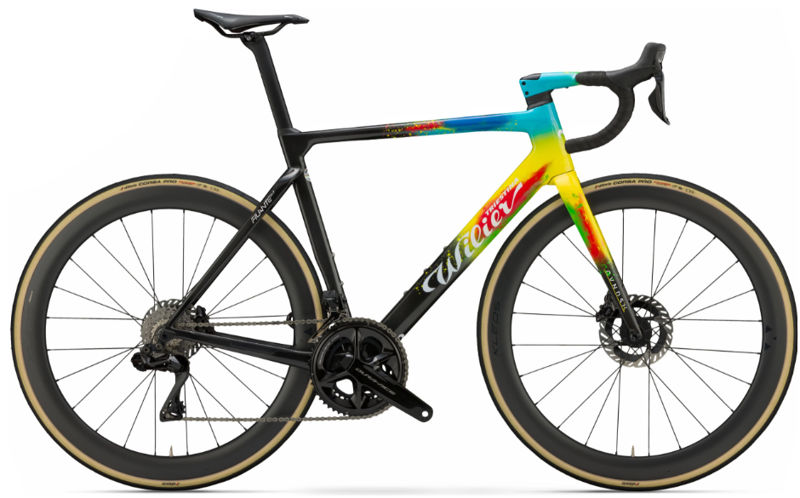

2024 Wilier Filante SLR geometry
Full frame geometry for the 2024 Wilier Filante SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 380 | 75.2 | 70.8 | 104 | 515 | 450 | 407 | 981 |
| S | 521 | 384 | 74.5 | 72 | 119 | 530 | 480 | 407 | 984 |
| M | 538 | 388 | 74 | 72.5 | 135 | 543 | 500 | 408 | 990 |
| L | 555 | 391 | 73.5 | 73 | 154 | 556 | 520 | 410 | 997 |
| XL | 571 | 395 | 73 | 73 | 166 | 570 | 540 | 411 | 1002 |
| XXL | 587 | 399 | 72.5 | 73.5 | 181 | 583 | 560 | 411 | 1006 |
All measurements in millimetres unless marked (°) for angles.
