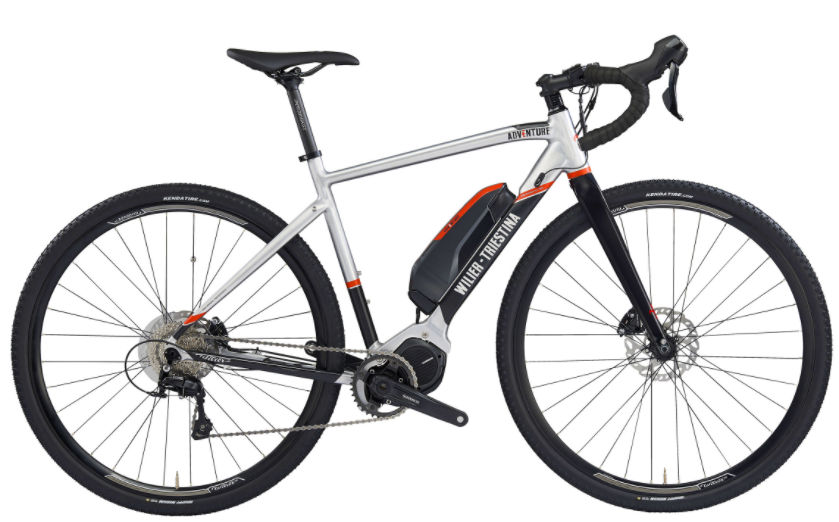

2018 Wilier e Adventure geometry
Full frame geometry for the 2018 Wilier e Adventure, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 545 | 375 | 74.5 | 71 | 120 | 527 | 490 | 440 |
| M | 566 | 382 | 74 | 71.5 | 140 | 545 | 510 | 440 |
| L | 585 | 389 | 73.5 | 71.5 | 160 | 564 | 530 | 440 |
| XL | 604 | 396 | 73 | 71.5 | 180 | 582 | 550 | 440 |
All measurements in millimetres unless marked (°) for angles.
