2018 Wilier · EHB

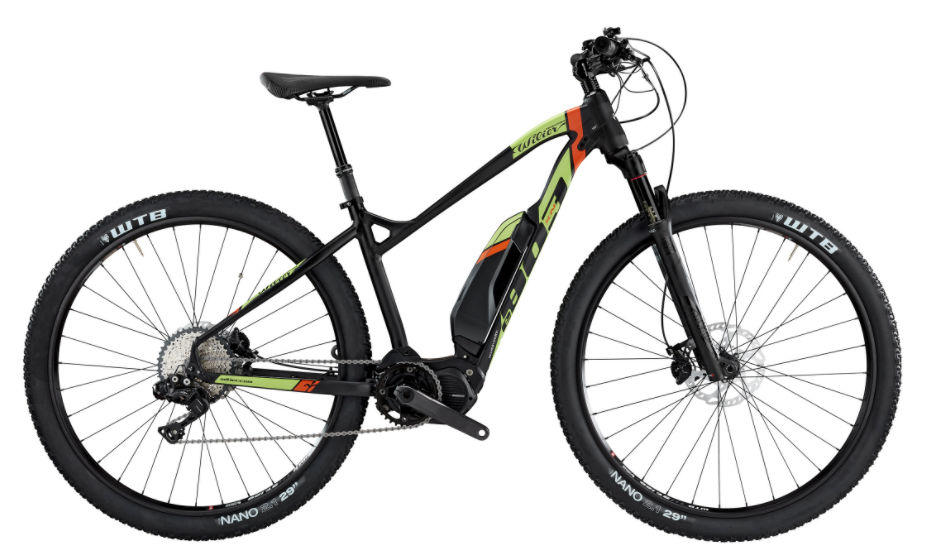

2018 Wilier e 803XN geometry
Full frame geometry for the 2018 Wilier e 803XN, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 617 | 371 | 73 | 69 | 110 | 560 | 380 | 450 |
| M | 627 | 391 | 73 | 69 | 120 | 583 | 420 | 450 |
| L | 636 | 412 | 73 | 69 | 130 | 606 | 460 | 450 |
| XL | 645 | 433 | 73 | 69 | 140 | 630 | 500 | 450 |
All measurements in millimetres unless marked (°) for angles.
