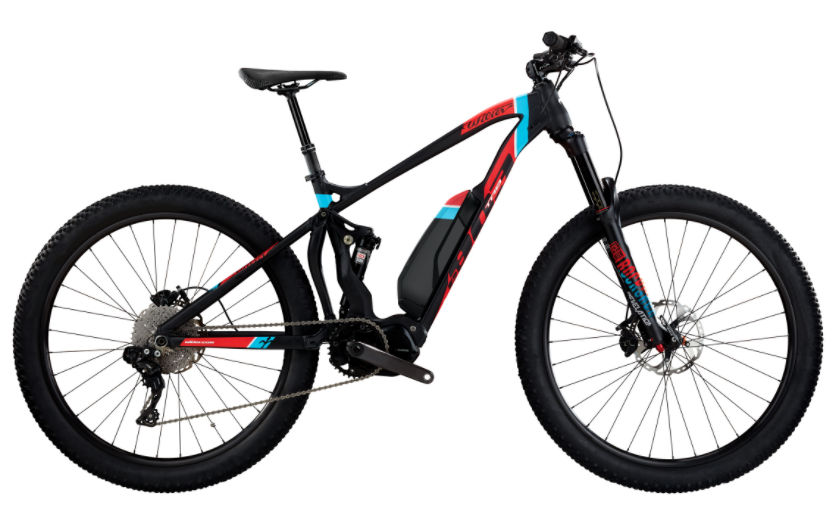

2018 Wilier e 803TRB geometry
Full frame geometry for the 2018 Wilier e 803TRB, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 611 | 422 | 75 | 68 | 100 | 585 | 380 | 455 |
| M | 620 | 446 | 75 | 68 | 110 | 613 | 420 | 455 |
| L | 630 | 472 | 75 | 68 | 120 | 641 | 460 | 455 |
| XL | 639 | 493 | 75 | 68 | 130 | 670 | 500 | 455 |
All measurements in millimetres unless marked (°) for angles.
