2019 Wilier · RD

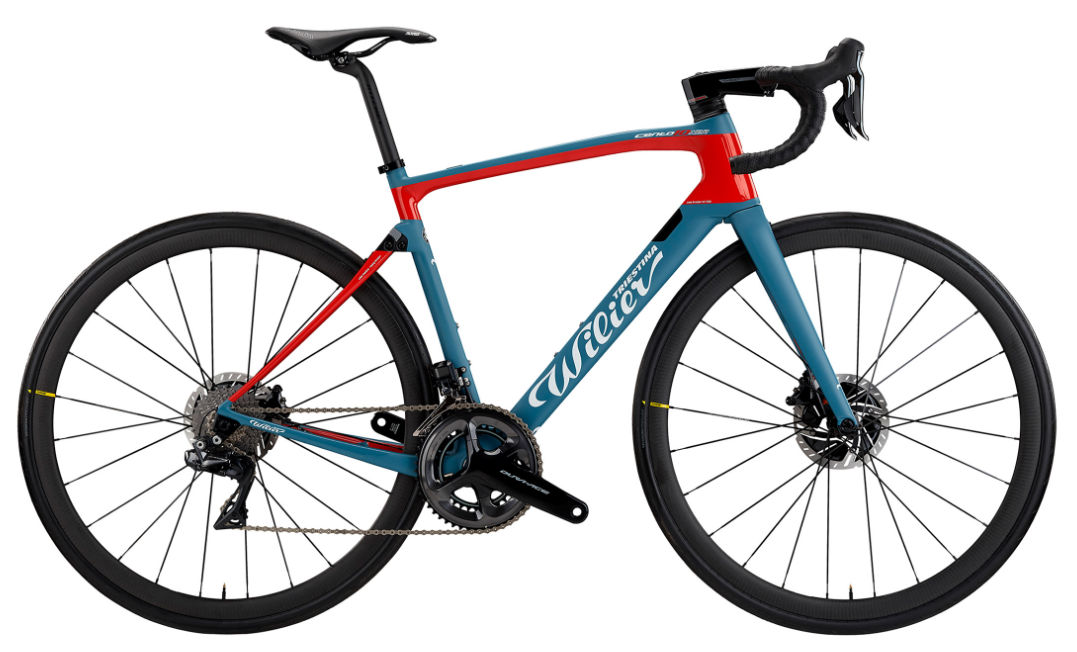

2019 Wilier Cento10NDR Disc geometry
Full frame geometry for the 2019 Wilier Cento10NDR Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 527 | 369 | 74.5 | 71 | 117 | 517 | 460 | 406 |
| S | 546 | 374 | 74 | 71.5 | 136 | 532 | 490 | 406 |
| M | 566 | 379 | 73.5 | 72 | 157 | 547 | 510 | 408 |
| L | 586 | 384 | 73.5 | 72.5 | 177 | 558 | 530 | 408 |
| XL | 604 | 389 | 73 | 72.5 | 196 | 574 | 560 | 411 |
| XXL | 625 | 395 | 72.5 | 72.5 | 217 | 592 | 590 | 411 |
All measurements in millimetres unless marked (°) for angles.
