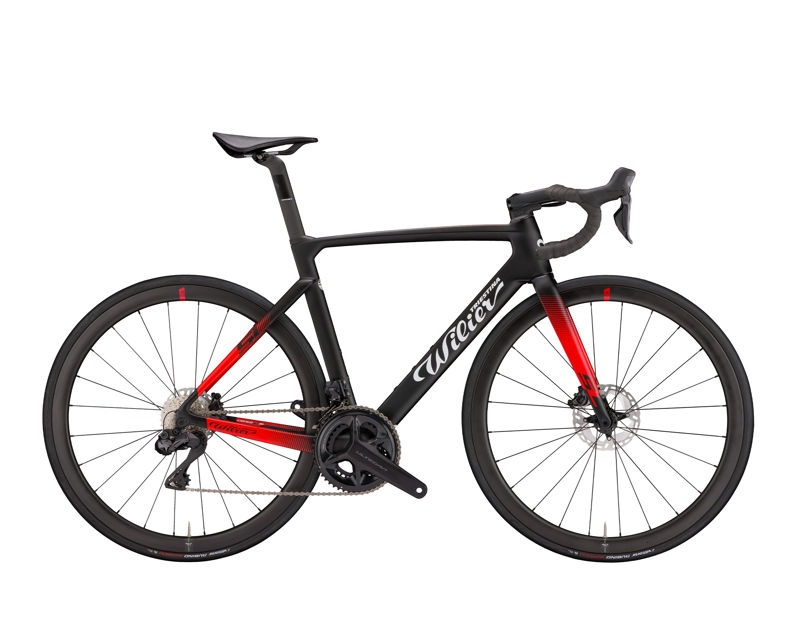

2022 Wilier Cento10 SL Rim geometry
Full frame geometry for the 2022 Wilier Cento10 SL Rim, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 503 | 378 | 75 | 71.3 | 107 | 513 | 450 | 404 |
| S | 519 | 382 | 74.5 | 72 | 121 | 526 | 480 | 404 |
| M | 536 | 387 | 74 | 72.5 | 138 | 541 | 500 | 405 |
| L | 554 | 391 | 73.5 | 73 | 154 | 556 | 520 | 405 |
| XL | 571 | 396 | 73 | 73 | 173 | 571 | 540 | 407 |
| XXL | 589 | 400 | 72.5 | 73.5 | 190 | 587 | 560 | 407 |
All measurements in millimetres unless marked (°) for angles.
