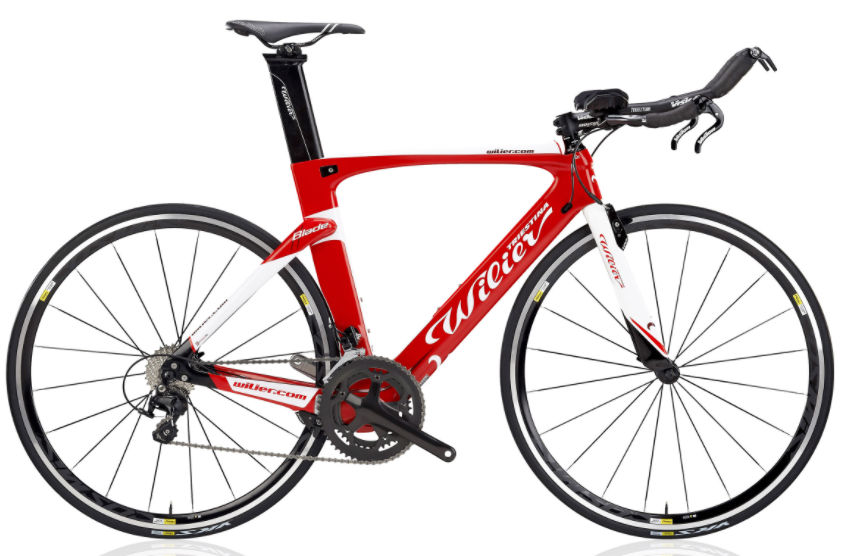

2014 Wilier Blade geometry
Full frame geometry for the 2014 Wilier Blade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 494 | 390 | 76 | 72 | 88 | 513 | 509 | 405 |
| M | 514 | 407 | 76 | 72.5 | 107 | 535 | 529 | 405 |
| L | 534 | 424 | 76 | 72.5 | 129 | 557 | 550 | 405 |
| XL | 554 | 441 | 76 | 72.5 | 149 | 579 | 570 | 405 |
All measurements in millimetres unless marked (°) for angles.
