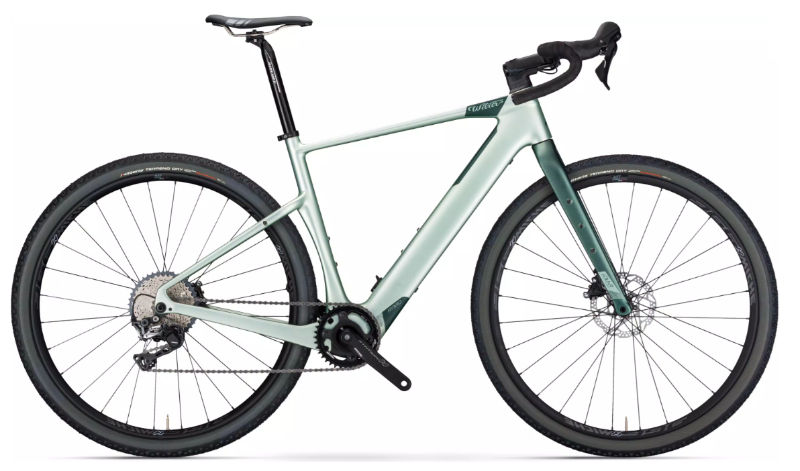

2025 Wilier Adlar Hybrid geometry
Full frame geometry for the 2025 Wilier Adlar Hybrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 538 | 395 | 75 | 69.5 | 100 | 547 | 440 | 441 | 1060 |
| S | 562 | 404 | 74.5 | 69.5 | 106 | 563 | 470 | 441 | 1071 |
| M | 586 | 413 | 74 | 69.5 | 132 | 583 | 500 | 441 | 1089 |
| L | 610 | 422 | 74 | 69.5 | 158 | 599 | 530 | 441 | 1107 |
| XL | 634 | 431 | 73.5 | 69.5 | 183 | 621 | 570 | 441 | 1125 |
All measurements in millimetres unless marked (°) for angles.
