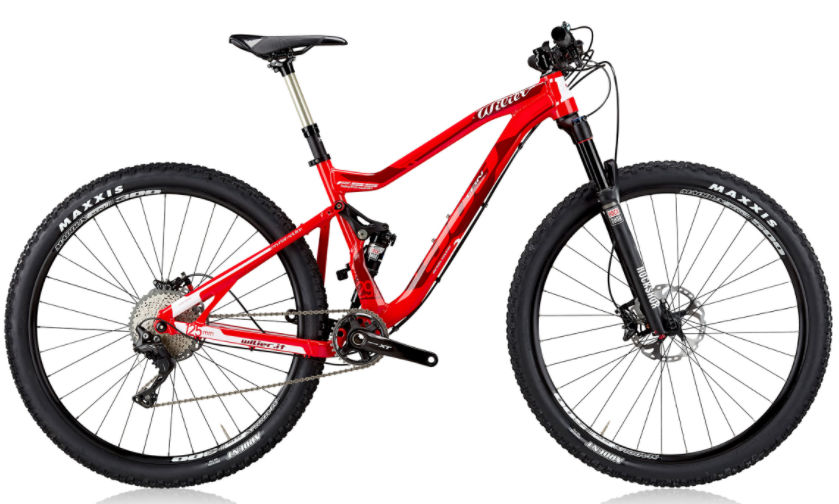

2018 Wilier 903 TRN geometry
Full frame geometry for the 2018 Wilier 903 TRN, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 584 | 428 | 75 | 69.5 | 110 | 585 | 380 | 440 |
| M | 585 | 448 | 75 | 69.5 | 110 | 605 | 420 | 440 |
| L | 594 | 465 | 75 | 69.5 | 120 | 625 | 460 | 440 |
| XL | 603 | 483 | 75 | 69.5 | 130 | 645 | 500 | 440 |
All measurements in millimetres unless marked (°) for angles.
