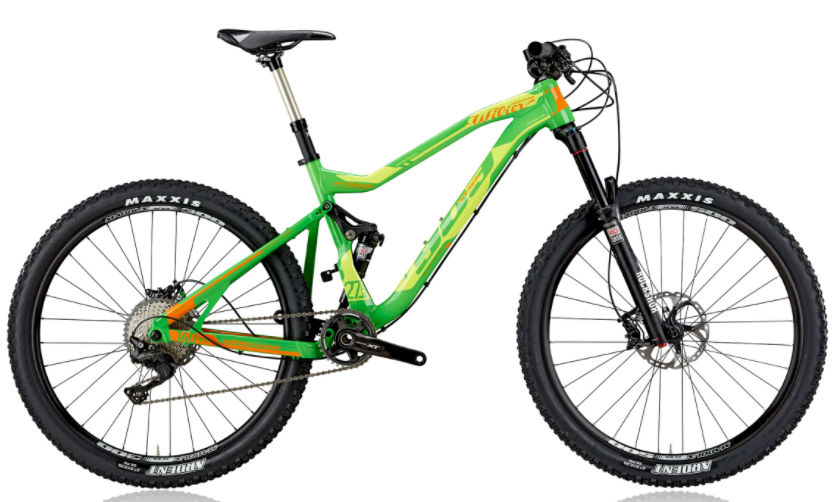

2018 Wilier 903 TRB geometry
Full frame geometry for the 2018 Wilier 903 TRB, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| M | 596 | 439 | 74.5 | 67.5 | 100 | 605 | 420 | 430 |
| S | 596 | 419 | 74.5 | 67.5 | 100 | 585 | 380 | 430 |
| L | 606 | 457 | 74.5 | 67.5 | 110 | 625 | 460 | 430 |
| XL | 616 | 474 | 74.5 | 67.5 | 120 | 645 | 500 | 430 |
All measurements in millimetres unless marked (°) for angles.
