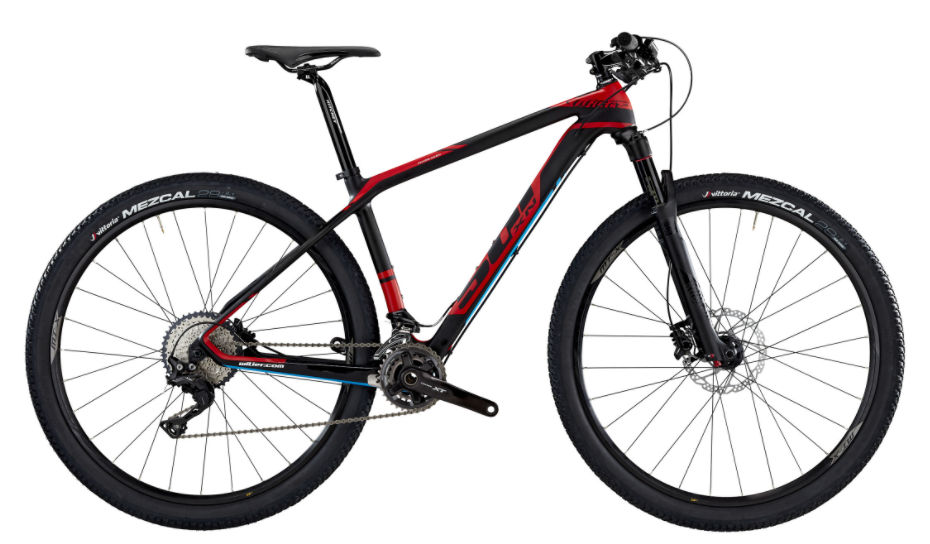

2018 Wilier 501XN geometry
Full frame geometry for the 2018 Wilier 501XN, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 588 | 395 | 73.5 | 70 | 95 | 570 | 400 | 439 |
| M | 598 | 412 | 73 | 71.3 | 100 | 595 | 440 | 439 |
| L | 608 | 428 | 72.5 | 71.5 | 110 | 620 | 480 | 439 |
| XL | 623 | 443 | 72.5 | 71.5 | 125 | 640 | 530 | 439 |
All measurements in millimetres unless marked (°) for angles.
