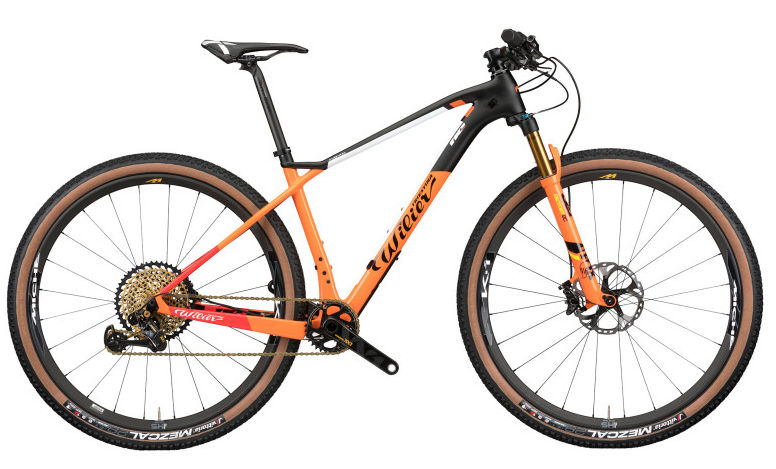

2019 Wilier 110X geometry
Full frame geometry for the 2019 Wilier 110X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 600 | 395 | 73.5 | 69 | 91 | 573 | 410 | 437 |
| M | 613 | 414 | 73.5 | 69.5 | 103 | 596 | 450 | 437 |
| L | 626 | 433 | 73.5 | 69.5 | 117 | 618 | 490 | 437 |
| XL | 639 | 452 | 73 | 69.5 | 130 | 647 | 530 | 437 |
All measurements in millimetres unless marked (°) for angles.
