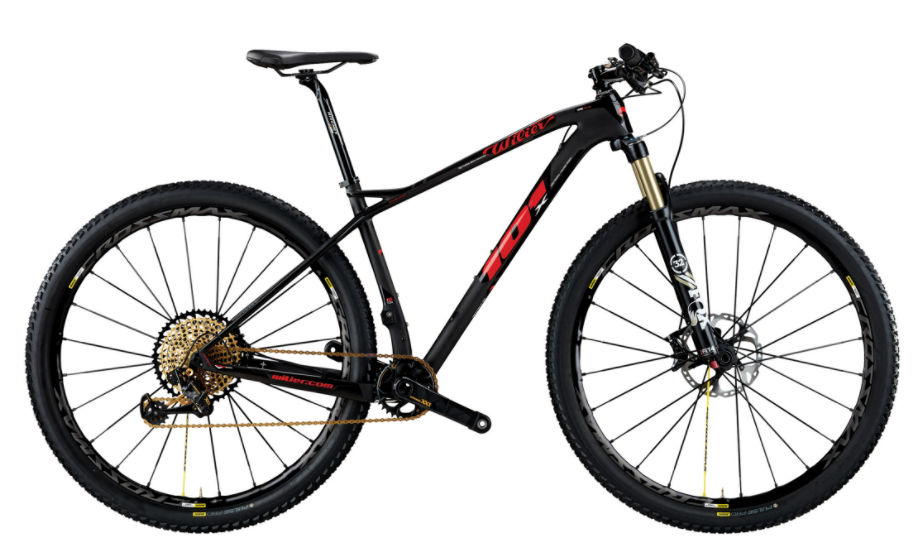

2018 Wilier 101X geometry
Full frame geometry for the 2018 Wilier 101X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 576 | 390 | 74 | 69.5 | 97 | 555 | 390 | 429 |
| S | 607 | 400 | 73.5 | 70 | 92 | 580 | 420 | 437 |
| M | 610 | 420 | 73.5 | 70.5 | 93 | 600 | 450 | 437 |
| L | 627 | 435 | 73.5 | 70.5 | 110 | 621 | 490 | 437 |
| XL | 644 | 450 | 73 | 70.5 | 129 | 647 | 530 | 437 |
All measurements in millimetres unless marked (°) for angles.
