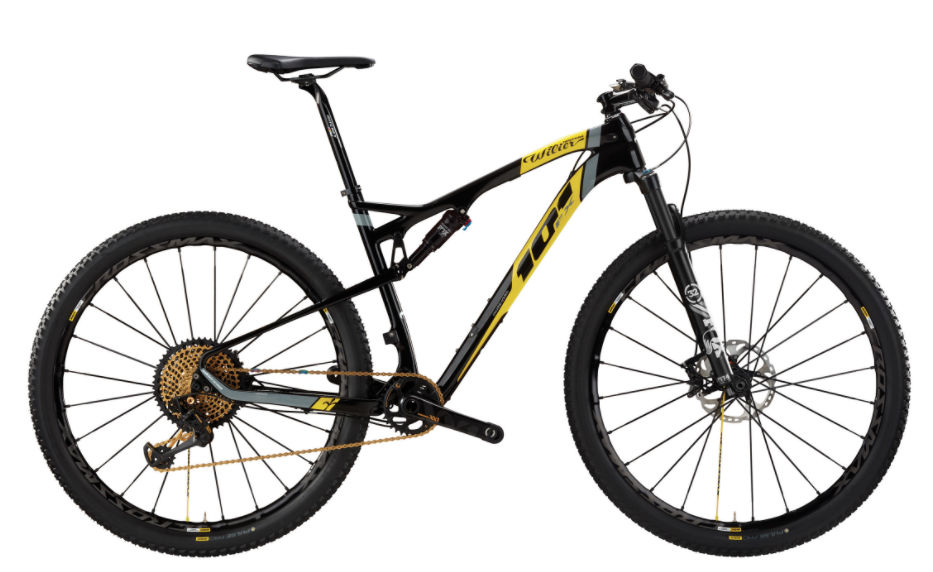

2018 Wilier 101FX geometry
Full frame geometry for the 2018 Wilier 101FX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 588 | 395 | 73.5 | 69.5 | 100 | 570 | 400 | 455 |
| M | 596 | 417 | 73.5 | 70 | 106 | 594 | 440 | 455 |
| L | 604 | 440 | 73.5 | 70 | 115 | 619 | 480 | 455 |
| XL | 614 | 463 | 73.5 | 70 | 125 | 645 | 530 | 455 |
All measurements in millimetres unless marked (°) for angles.
