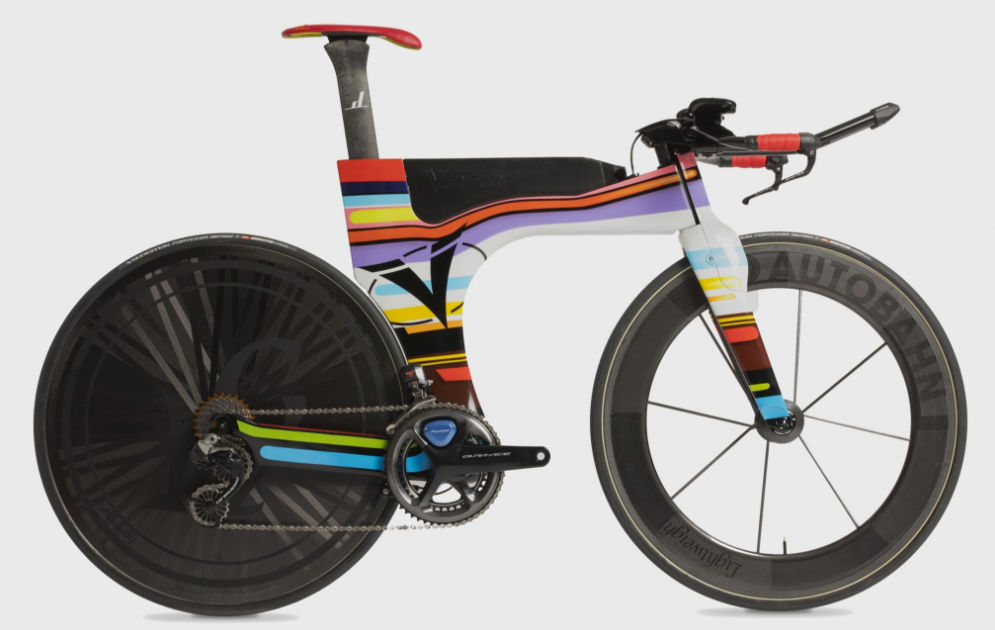

2018 Ventum One geometry
Full frame geometry for the 2018 Ventum One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 492 | 381 | 77 | 72 | 83 | 488 | 75 | 565 | 394 | 947 |
| 51 | 510 | 393 | 77 | 72 | 95 | 530 | 75 | 582 | 395 | 965 |
| 54 | 528 | 409 | 77 | 72 | 114 | 550 | 75 | 603 | 395 | 986 |
| 56 | 545 | 422 | 77 | 72 | 132 | 568 | 75 | 623 | 395 | 1006 |
| 58 | 564 | 437 | 77 | 72 | 152 | 588 | 75 | 642 | 395 | 1025 |
All measurements in millimetres unless marked (°) for angles.
