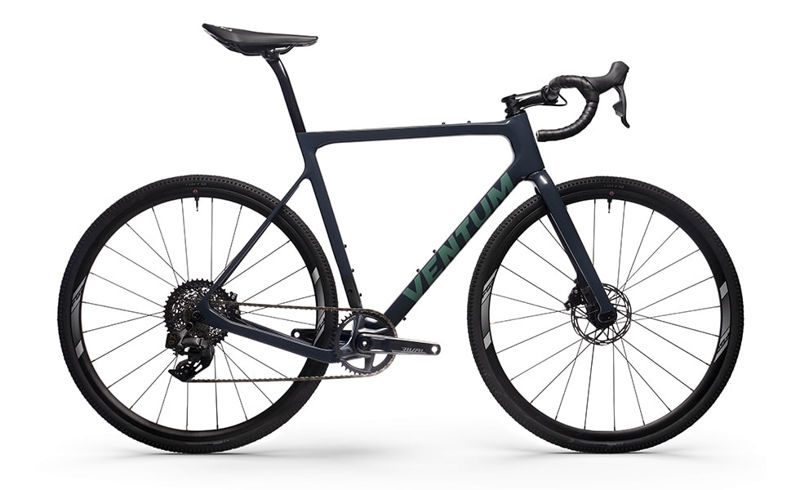

2022 Ventum GS1 geometry
Full frame geometry for the 2022 Ventum GS1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 522 | 365 | 72.5 | 69.5 | 105 | 530 | 547 | 70 | 592 | 420 | 1002 | 45 | 79 |
| M | 545 | 374 | 72.5 | 70 | 128 | 546 | 571 | 70 | 604 | 420 | 1014 | 45 | 76 |
| M/L | 570 | 383 | 72.5 | 71 | 150 | 563 | 598 | 70 | 612 | 420 | 1022 | 45 | 69 |
| L | 589 | 392 | 72.5 | 72 | 166 | 578 | 618 | 70 | 617 | 420 | 1027 | 45 | 63 |
| XL | 604 | 401 | 72.5 | 72.5 | 180 | 591 | 633 | 70 | 626 | 420 | 1036 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
