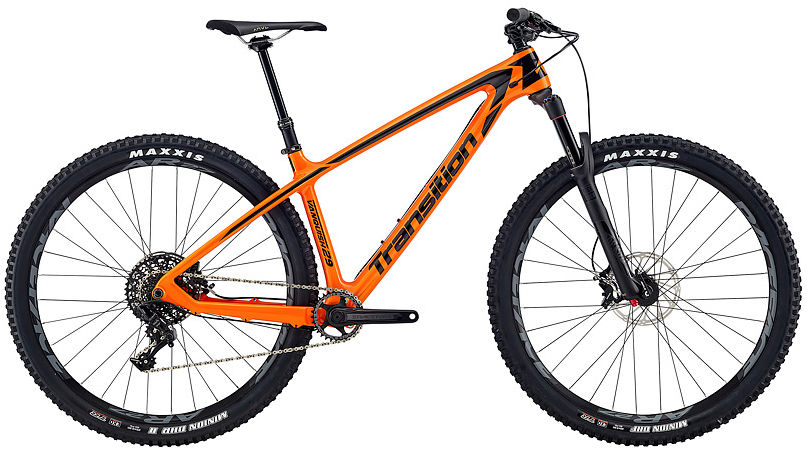

2017 Transition Vanquish geometry
Full frame geometry for the 2017 Transition Vanquish, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 621 | 435 | 74 | 67.5 | 100 | 612 | 410 | 683 | 55 | 420 | 1141 | 51 | 99 |
| L | 630 | 465 | 74 | 67.5 | 110 | 645 | 450 | 689 | 55 | 420 | 1175 | 51 | 99 |
| XL | 640 | 495 | 74 | 67.5 | 120 | 678 | 495 | 700 | 55 | 420 | 1209 | 51 | 99 |
All measurements in millimetres unless marked (°) for angles.
