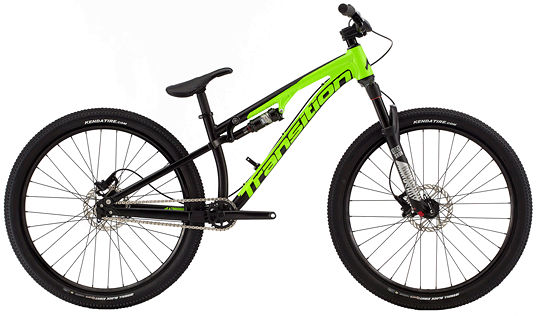

2017 Transition Triple geometry
Full frame geometry for the 2017 Transition Triple, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OS | 545 | 429 | 73.5 | 68.5 | 104 | 546 | 330 | 622 | 12 | 390 | 1071 | 40 | 90 |
All measurements in millimetres unless marked (°) for angles.
