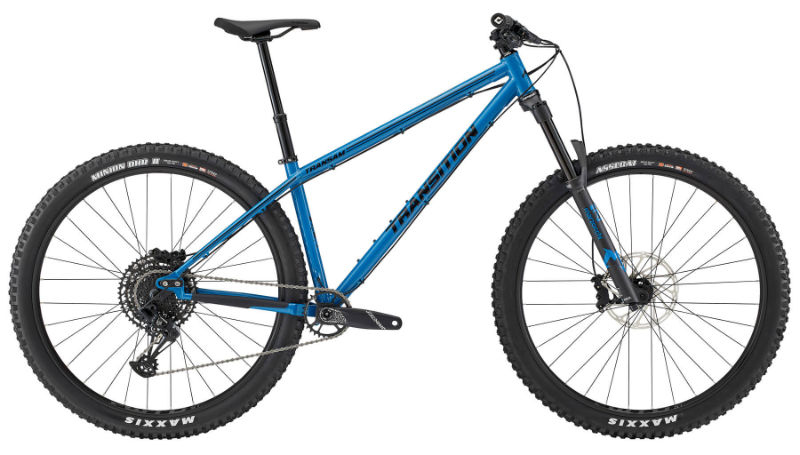

2026 Transition TransAM geometry
Full frame geometry for the 2026 Transition TransAM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 641 | 460 | 76.5 | 64 | 105 | 614 | 400 | 667 | 50 | 425 | 1219 | 44 |
| SM | 641 | 430 | 76.5 | 64 | 105 | 584 | 370 | 662 | 50 | 425 | 1187 | 44 |
| LG | 646 | 485 | 76.5 | 64 | 110 | 640 | 430 | 670 | 50 | 425 | 1246 | 44 |
| XL | 655 | 510 | 76.5 | 64 | 120 | 667 | 460 | 677 | 50 | 425 | 1276 | 44 |
All measurements in millimetres unless marked (°) for angles.
