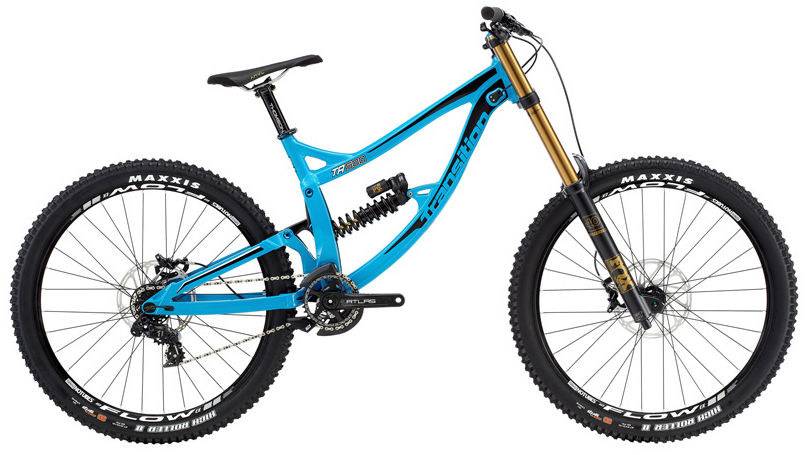

2017 Transition TR500 geometry
Full frame geometry for the 2017 Transition TR500, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 591 | 419 | 72.6 | 63 | 122 | 608 | 420 | 867 | 4 | 442 | 1205 | 42 | 134 |
| M | 591 | 390 | 72.6 | 63 | 122 | 582 | 420 | 867 | 4 | 442 | 1180 | 42 | 134 |
| S | 591 | 367 | 72.6 | 63 | 122 | 557 | 420 | 867 | 4 | 442 | 1154 | 42 | 134 |
| XL | 591 | 445 | 72.6 | 63 | 122 | 633 | 420 | 867 | 4 | 442 | 1230 | 42 | 134 |
All measurements in millimetres unless marked (°) for angles.
