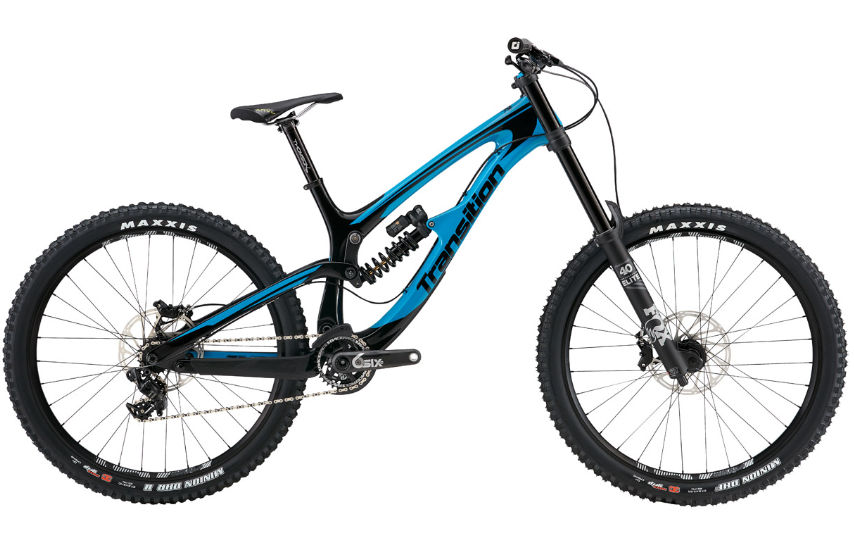

2018 Transition TR11 geometry
Full frame geometry for the 2018 Transition TR11, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 612 | 413 | 76 | 63 | 115 | 571 | 420 | 688 | 11 | 435 | 1212 | 52 |
| M | 616 | 433 | 76 | 63 | 120 | 594 | 420 | 688 | 11 | 435 | 1234 | 52 |
| L | 621 | 453 | 76 | 63 | 125 | 616 | 430 | 688 | 11 | 435 | 1257 | 52 |
| XL | 625 | 473 | 76 | 63 | 130 | 638 | 430 | 688 | 11 | 435 | 1279 | 52 |
All measurements in millimetres unless marked (°) for angles.
