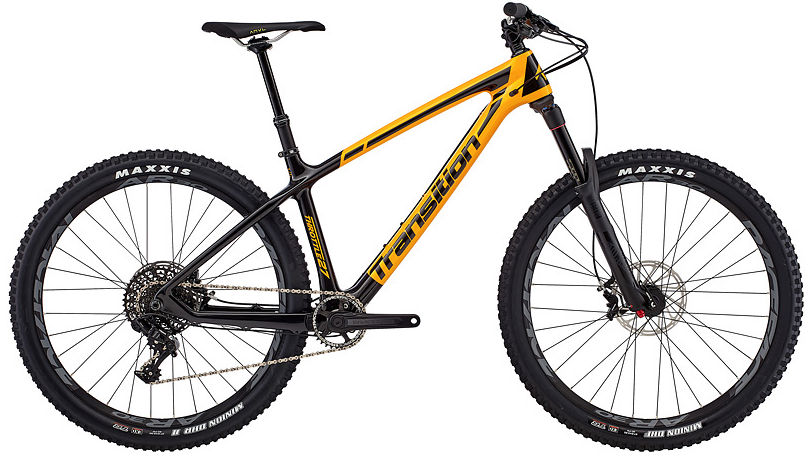

2017 Transition Throttle geometry
Full frame geometry for the 2017 Transition Throttle, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 390 | 74 | 66 | 100 | 563 | 385 | 658 | 40 | 420 | 1105 | 42 | 113 |
| M | 612 | 420 | 74 | 66 | 110 | 596 | 410 | 677 | 40 | 420 | 1139 | 42 | 113 |
| L | 621 | 450 | 74 | 66 | 120 | 628 | 450 | 682 | 40 | 420 | 1173 | 42 | 113 |
| XL | 630 | 480 | 74 | 66 | 130 | 661 | 495 | 693 | 40 | 420 | 1207 | 42 | 113 |
All measurements in millimetres unless marked (°) for angles.
