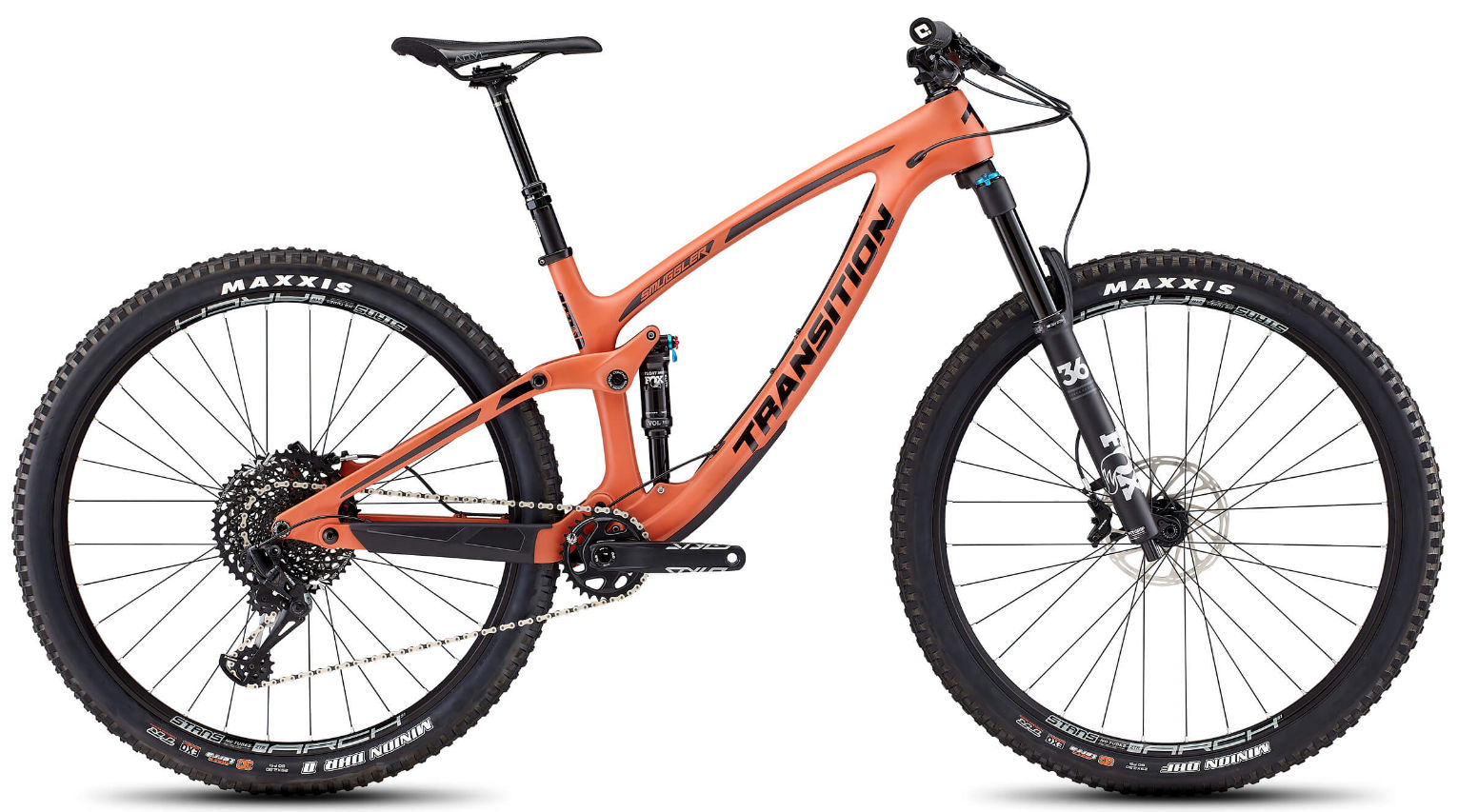

2019 Transition Smuggler Carbon geometry
Full frame geometry for the 2019 Transition Smuggler Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 615 | 450 | 76.3 | 66 | 100 | 596 | 410 | 695 | 35 | 756 | 430 | 1184 | 43 |
| SM | 615 | 425 | 77 | 66 | 100 | 571 | 400 | 688 | 35 | 731 | 430 | 1159 | 43 |
| LG | 624 | 475 | 75.8 | 66 | 110 | 625 | 450 | 705 | 35 | 785 | 430 | 1213 | 43 |
| XL | 633 | 500 | 75.3 | 66 | 120 | 653 | 495 | 720 | 35 | 814 | 430 | 1242 | 43 |
All measurements in millimetres unless marked (°) for angles.
