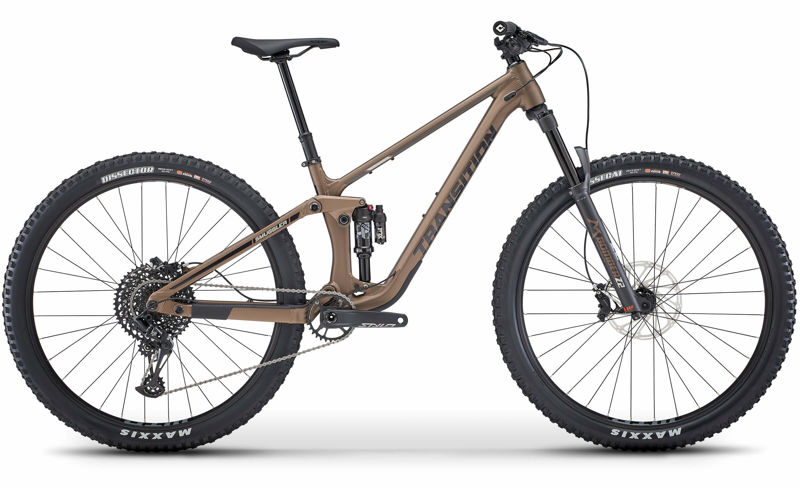

2023 Transition Smuggler Alloy geometry
Full frame geometry for the 2023 Transition Smuggler Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SM | 607 | 430 | 72 | 65 | 100 | 555 | 35 | 437 | 1181 |
| MD | 616 | 460 | 72 | 65 | 110 | 588 | 35 | 437 | 1215 |
| LG | 625 | 485 | 72 | 65 | 120 | 617 | 35 | 443 | 1250 |
| XL | 635 | 510 | 72 | 65 | 130 | 645 | 35 | 443 | 1280 |
| XXL | 644 | 535 | 72 | 65 | 140 | 670 | 35 | 443 | 1309 |
All measurements in millimetres unless marked (°) for angles.
