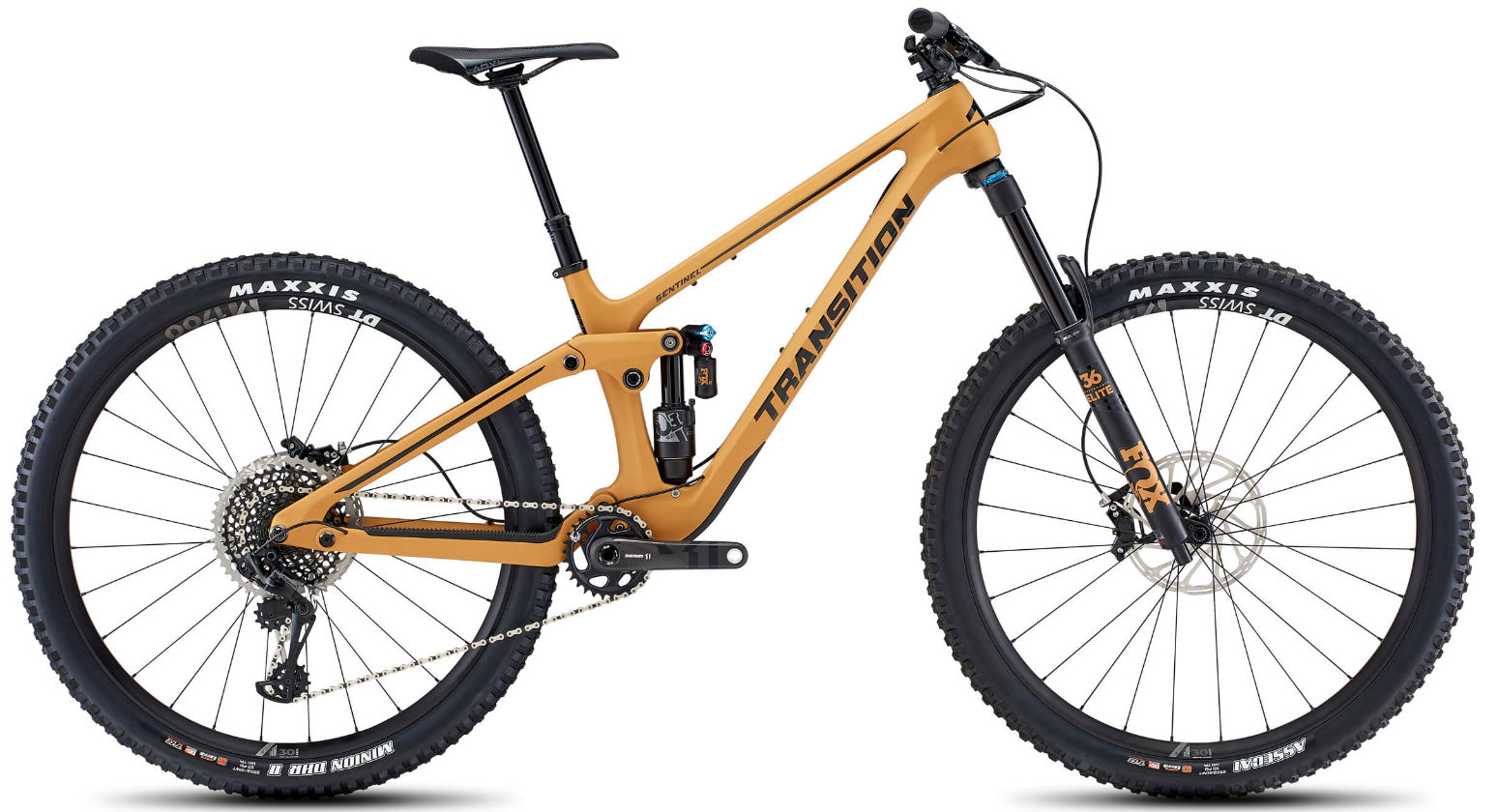

2020 Transition Sentinel Carbon V2 (150) geometry
Full frame geometry for the 2020 Transition Sentinel Carbon V2 (150), size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 420 | 78.2 | 63.6 | 100 | 552 | 350 | 671 | 29 | 761 | 440 | 1199 | 43 |
| M | 622 | 450 | 77.5 | 63.6 | 110 | 585 | 390 | 688 | 29 | 794 | 440 | 1233 | 43 |
| L | 631 | 476 | 76.9 | 63.6 | 120 | 613 | 430 | 700 | 29 | 824 | 440 | 1263 | 43 |
| XL | 640 | 501 | 76.4 | 63.6 | 130 | 641 | 460 | 712 | 29 | 853 | 440 | 1292 | 43 |
| XXL | 649 | 521 | 76 | 63.6 | 140 | 665 | 490 | 722 | 29 | 877 | 440 | 1316 | 43 |
All measurements in millimetres unless marked (°) for angles.
