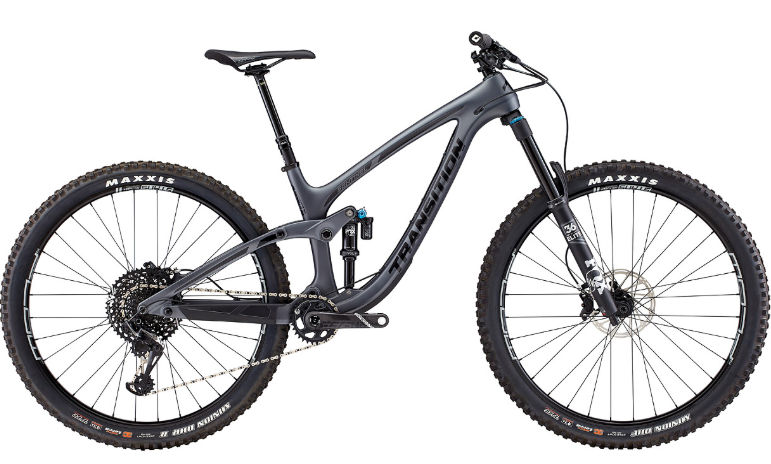

2019 Transition Sentinel Carbon V1 geometry
Full frame geometry for the 2019 Transition Sentinel Carbon V1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 617 | 450 | 76.8 | 64 | 100 | 593 | 400 | 695 | 30 | 435 | 1218 | 43 |
| SM | 617 | 425 | 77.5 | 64 | 100 | 568 | 360 | 685 | 30 | 435 | 1193 | 43 |
| L | 626 | 475 | 76.3 | 64 | 110 | 622 | 440 | 700 | 30 | 435 | 1247 | 43 |
| XL | 635 | 500 | 75.8 | 64 | 120 | 650 | 490 | 715 | 30 | 435 | 1277 | 43 |
All measurements in millimetres unless marked (°) for angles.
