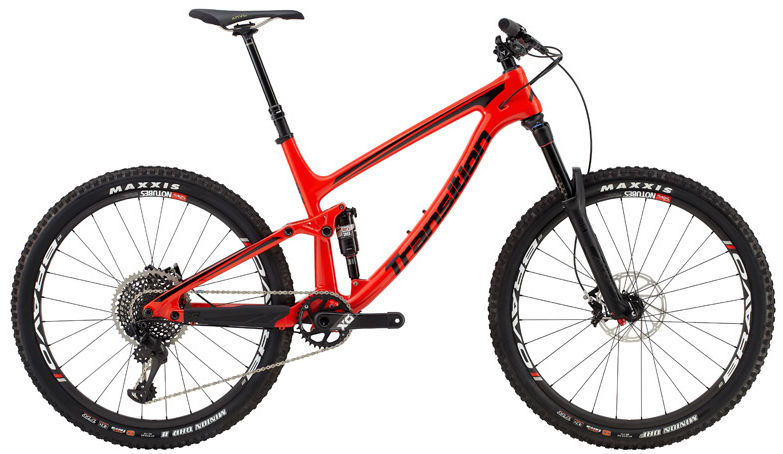

2017 Transition Scout Carbon geometry
Full frame geometry for the 2017 Transition Scout Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 406 | 76 | 67 | 100 | 556 | 393 | 671 | 20 | 425 | 1117 | 42 | 105 |
| M | 597 | 432 | 75.4 | 67 | 110 | 585 | 419 | 680 | 20 | 425 | 1147 | 42 | 105 |
| L | 606 | 457 | 74.9 | 67 | 120 | 614 | 457 | 691 | 20 | 425 | 1176 | 42 | 105 |
| XL | 616 | 483 | 74.5 | 67 | 130 | 643 | 495 | 706 | 20 | 425 | 1205 | 42 | 105 |
All measurements in millimetres unless marked (°) for angles.
