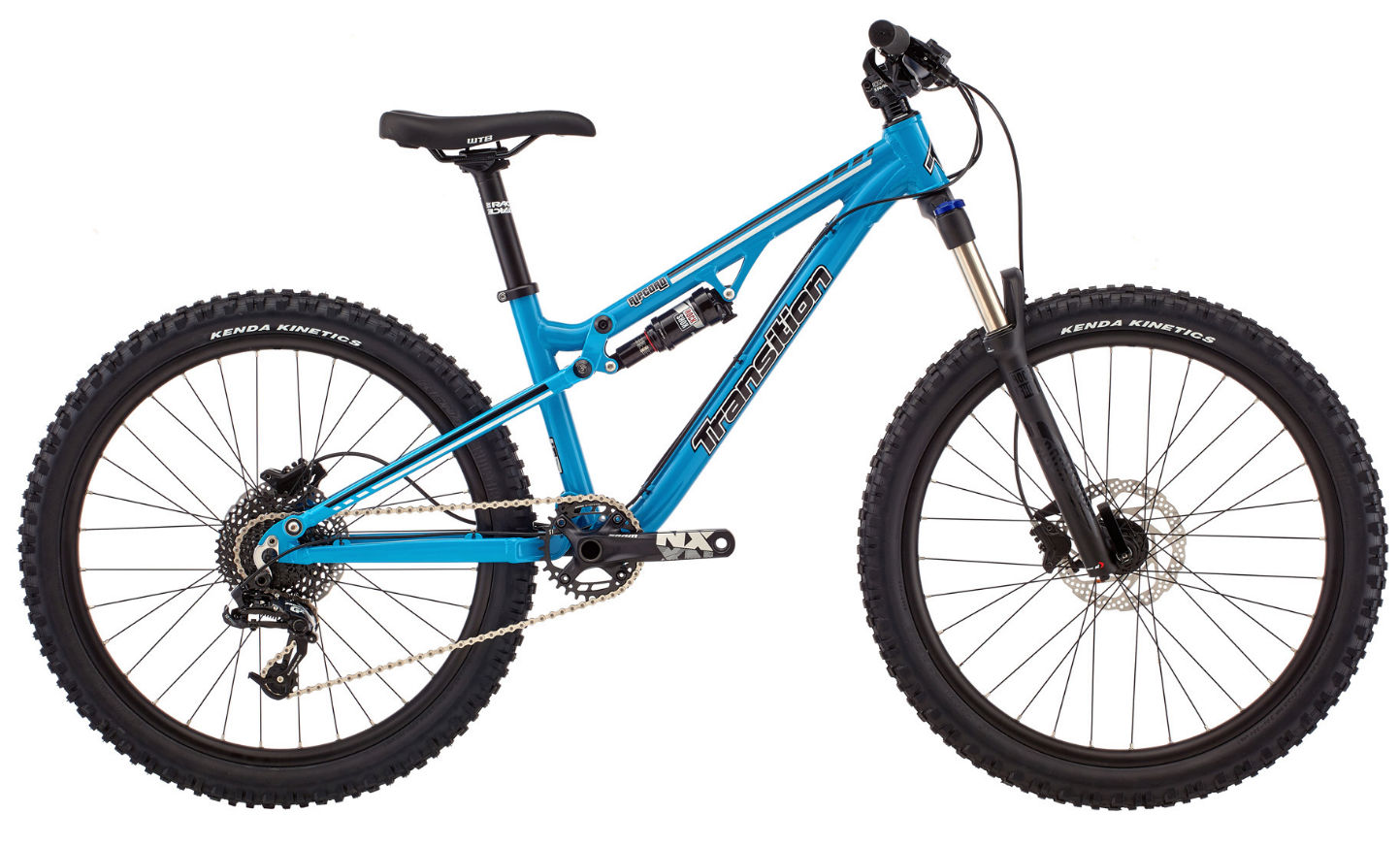

2017 Transition Ripcord geometry
Full frame geometry for the 2017 Transition Ripcord, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OS | 503 | 366 | 74 | 67 | 90 | 510 | 317 | 576 | 5 | 381 | 1005 | 39 | 92 |
All measurements in millimetres unless marked (°) for angles.
