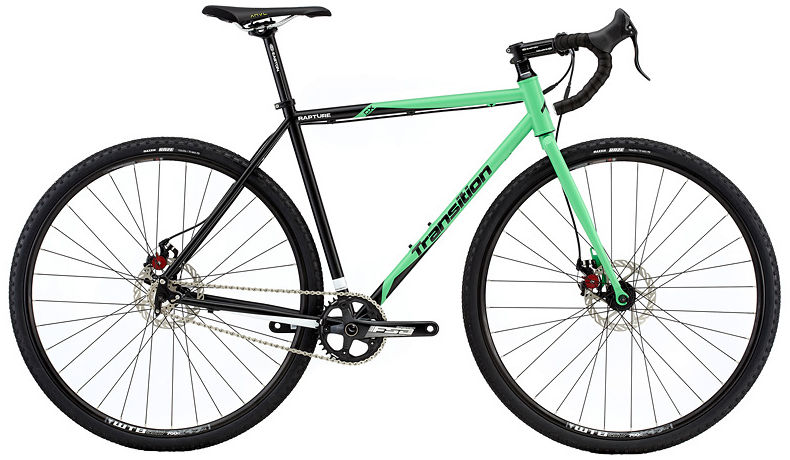

2017 Transition Rapture geometry
Full frame geometry for the 2017 Transition Rapture, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 534 | 365 | 73 | 71 | 122 | 520 | 480 | 789 | 67 | 426 | 995 | 45 | 72 |
| M | 548 | 377 | 73 | 72 | 130 | 545 | 520 | 817 | 67 | 426 | 1011 | 45 | 65 |
| L | 581 | 391 | 73 | 72 | 150 | 570 | 550 | 849 | 67 | 426 | 1027 | 45 | 65 |
| XL | 595 | 406 | 73 | 72 | 170 | 600 | 580 | 872 | 67 | 426 | 1046 | 45 | 65 |
All measurements in millimetres unless marked (°) for angles.
