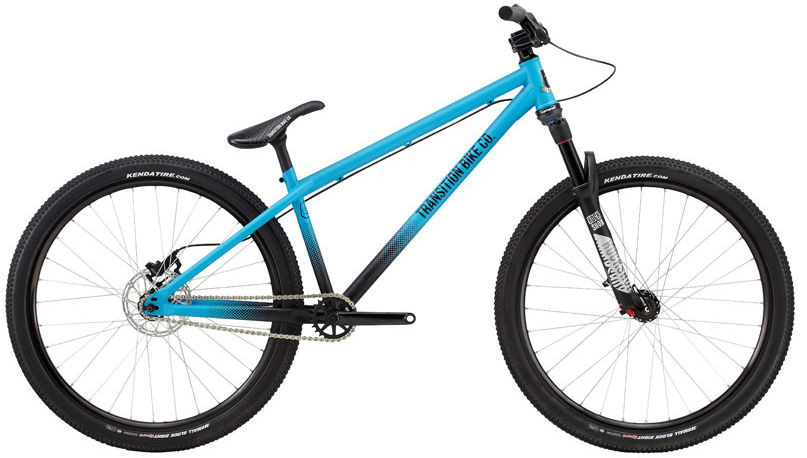

2017 Transition PBJ geometry
Full frame geometry for the 2017 Transition PBJ, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 569 | 431 | 72 | 68.5 | 110 | 614 | 338 | 620 | 20 | 388 | 1075 | 40 | 90 |
| S | 569 | 405 | 72 | 68.5 | 110 | 588 | 338 | 620 | 20 | 388 | 1049 | 40 | 90 |
All measurements in millimetres unless marked (°) for angles.
