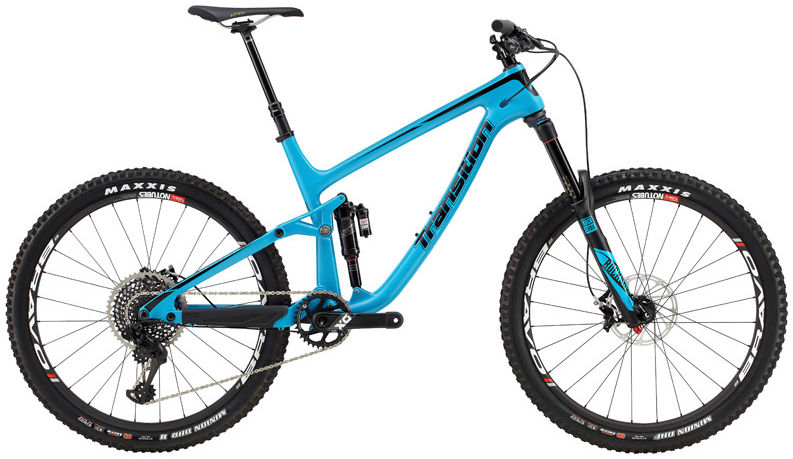

2017 Transition Patrol Carbon geometry
Full frame geometry for the 2017 Transition Patrol Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 406 | 76 | 65 | 100 | 555 | 393 | 685 | 15 | 430 | 1151 | 42 | 119 |
| M | 600 | 432 | 75.4 | 65 | 110 | 583 | 419 | 693 | 15 | 430 | 1181 | 42 | 119 |
| L | 609 | 457 | 74.9 | 65 | 120 | 613 | 457 | 705 | 15 | 430 | 1210 | 42 | 119 |
| XL | 618 | 483 | 74.5 | 65 | 130 | 641 | 495 | 717 | 15 | 430 | 1240 | 42 | 119 |
All measurements in millimetres unless marked (°) for angles.
