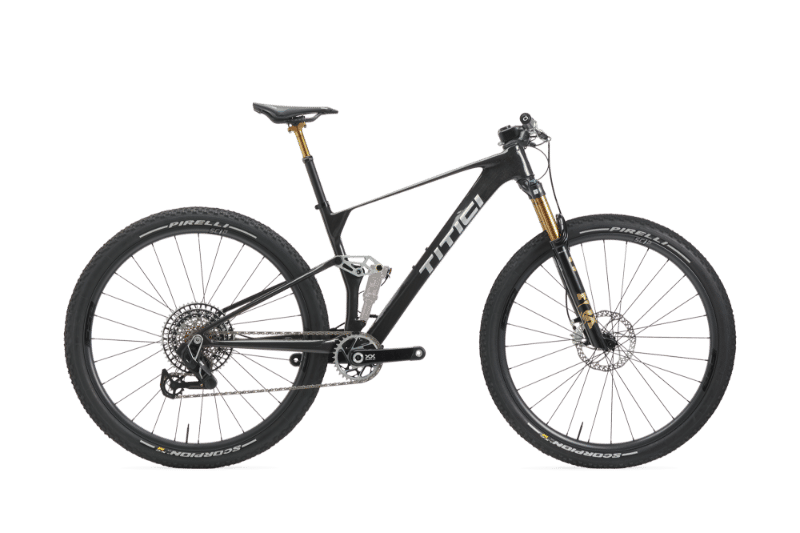

2026 Titici · MDB
2026 Titici Vertigo geometry
Full frame geometry for the 2026 Titici Vertigo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 598 | 420 | 75 | 67 | 90 | 579 | 415 | 447 |
| M | 603 | 439 | 75 | 67 | 95 | 600 | 440 | 447 |
| L | 614 | 470 | 75 | 67 | 110 | 629 | 470 | 447 |
All measurements in millimetres unless marked (°) for angles.
