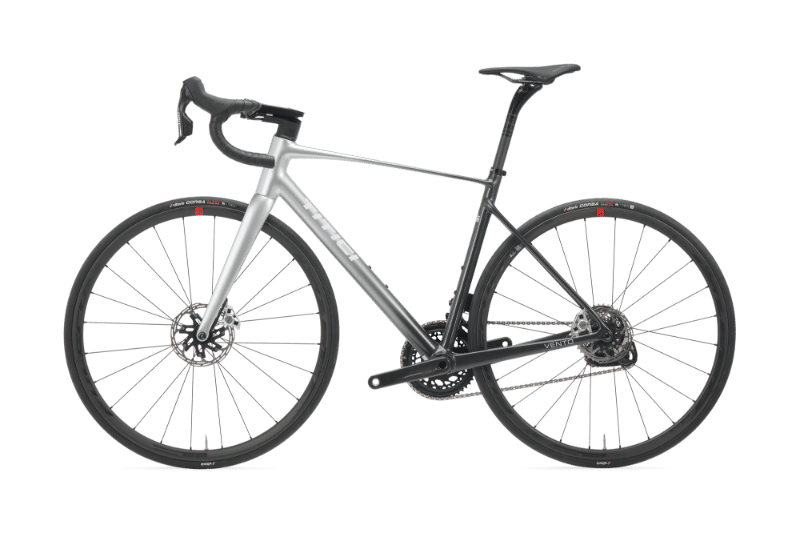

2026 Titici Vento geometry
Full frame geometry for the 2026 Titici Vento, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XXS | 504 | 367 | 75 | 70.5 | 105 | 505 | 430 | 403 |
| XS | 515 | 374 | 75 | 70.5 | 115 | 515 | 455 | 403 |
| S | 526 | 382 | 74.5 | 71.5 | 125 | 530 | 475 | 405 |
| M | 550.8 | 391 | 74 | 72.5 | 147 | 550 | 500 | 406 |
| L | 577 | 393 | 73.5 | 73 | 173 | 565 | 530 | 407 |
| XL | 596.5 | 397.6 | 73 | 73 | 193 | 580 | 555 | 409 |
| XXL | 614.6 | 397.8 | 73.5 | 73.5 | 210 | 590 | 575 | 411 |
All measurements in millimetres unless marked (°) for angles.
