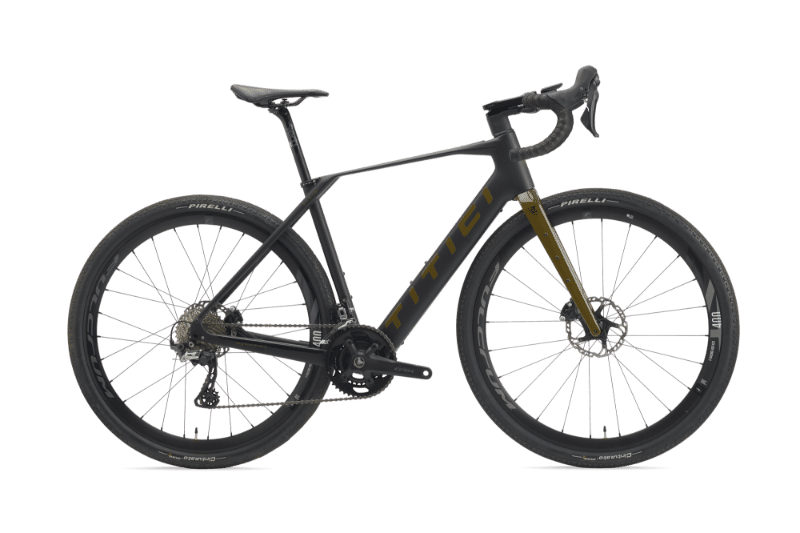

2026 Titici Dynamica G geometry
Full frame geometry for the 2026 Titici Dynamica G, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XL | 517.7 | 400.5 | 73 | 72 | 195 | 590 | 555 | 425 |
| XS | 541.6 | 361.9 | 74 | 69.5 | 125 | 520 | 445 | 425 |
| S | 557.7 | 369.7 | 73.7 | 70 | 140 | 535 | 465 | 425 |
| M | 575.8 | 378.9 | 73.6 | 71 | 155 | 550 | 485 | 425 |
| L | 596.7 | 389.3 | 73.3 | 71.5 | 175 | 570 | 515 | 425 |
All measurements in millimetres unless marked (°) for angles.
