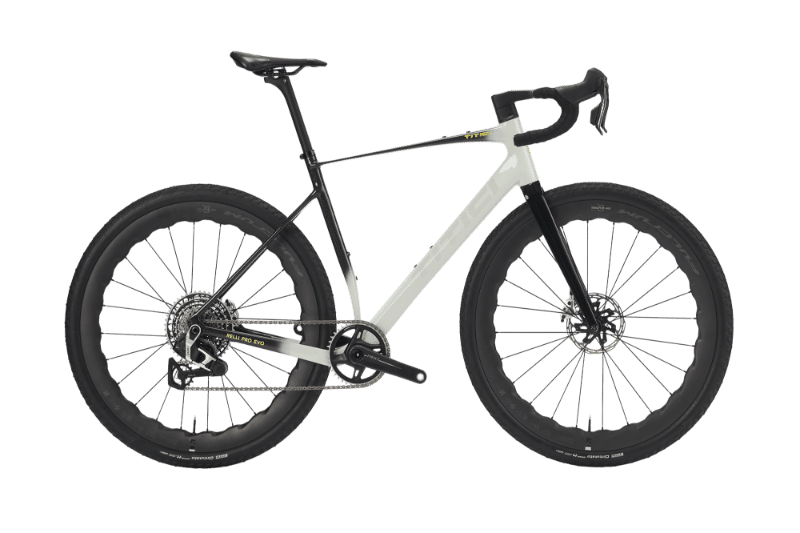

2026 Titici Relli Pro Evo geometry
Full frame geometry for the 2026 Titici Relli Pro Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 360 | 75 | 69.5 | 122 | 507 | 445 | 425 | 1005 |
| S | 542 | 373 | 75 | 70 | 130 | 523 | 460 | 425 | 1018 |
| M | 557 | 385 | 74.5 | 74 | 145 | 542 | 490 | 425 | 1027 |
| L | 577 | 400 | 74 | 71.5 | 165 | 561 | 520 | 425 | 1044 |
| XL | 598 | 400.4 | 73.5 | 72 | 185 | 596 | 555 | 425 | 1066 |
All measurements in millimetres unless marked (°) for angles.
