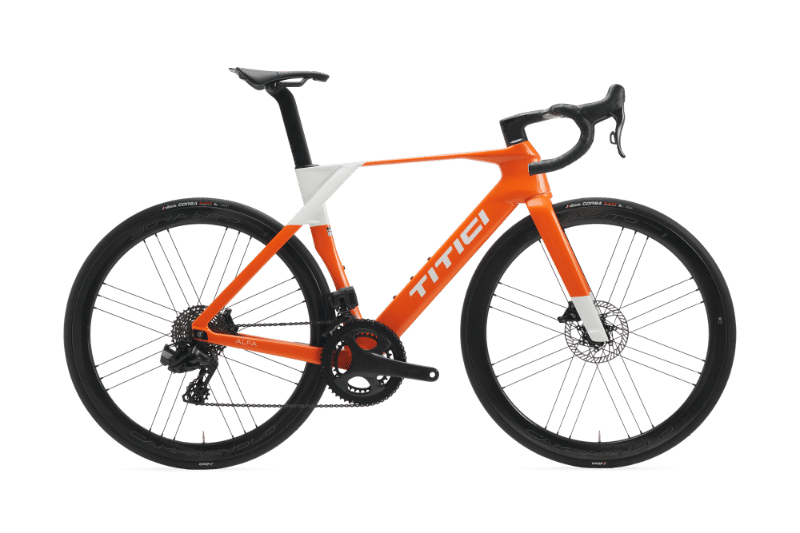

2026 Titici Alfa geometry
Full frame geometry for the 2026 Titici Alfa, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 503.2 | 375.6 | 75.4 | 71 | 100 | 509 | 450 | 405 | 49 |
| S | 521.4 | 380.8 | 74.8 | 71.9 | 118 | 524 | 480 | 405 | 49 |
| M | 539.7 | 386.4 | 74.2 | 72.5 | 136 | 540 | 500 | 406 | 44 |
| L | 558.2 | 391.3 | 73.6 | 72.9 | 154 | 556 | 520 | 408 | 44 |
| XL | 576.4 | 396.7 | 73 | 72.9 | 173 | 573 | 540 | 410 | 44 |
All measurements in millimetres unless marked (°) for angles.
