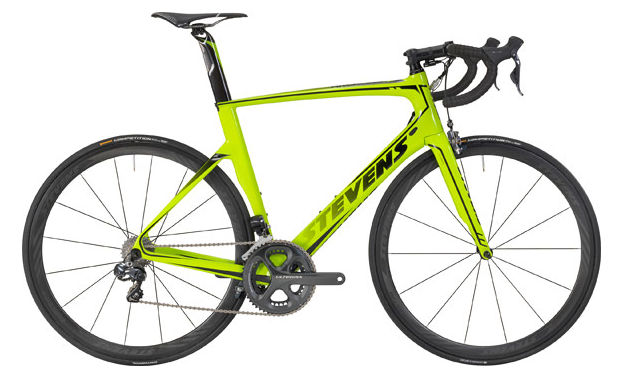

2015 Stevens Arcalis geometry

Name: 2015 Stevens Arcalis
Brand: Stevens

Full frame geometry for the 2015 Stevens Arcalis, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
50	513	370	74	71.5	110	518	474	741	70	571	410	970	45
52	524	380	74	72	121	531	490	754	70	580	410	980	45
54	545	380	73.5	72.5	141	541	505	770	70	581	410	980	45
56	562	389	73.5	73.5	156	556	515	783	70	586	410	986	45
58	587	397	73.5	73.5	181	570	525	799	70	600	410	1000	45
60	605	403	73.5	73.5	201	582	555	807	70	612	410	1012	45
62	625	404	73	73.5	221	595	590	851	70	619	410	1019	45

All measurements in millimetres unless marked (°) for angles.
