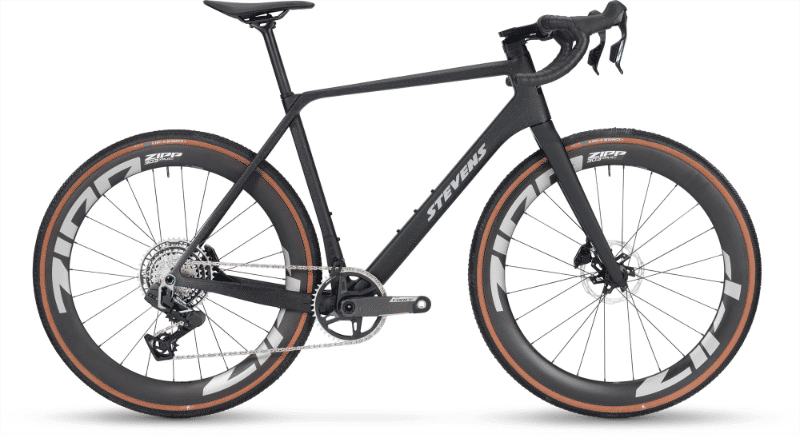

2026 Stevens Camino RS geometry
Full frame geometry for the 2026 Stevens Camino RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 533 | 377 | 75.5 | 70 | 110 | 515 | 430 | 751 | 70 | 603 | 425 | 1018 | 55 |
| 51 | 551 | 384 | 74.5 | 71 | 125 | 537 | 460 | 777 | 70 | 607 | 425 | 1022 | 55 |
| 54 | 572 | 395 | 74 | 71.5 | 145 | 559 | 490 | 802 | 70 | 620 | 425 | 1035 | 55 |
| 56 | 591 | 406 | 73.5 | 71.5 | 165 | 581 | 520 | 827 | 70 | 637 | 425 | 1052 | 55 |
| 58 | 612 | 422 | 73.5 | 72 | 185 | 603 | 550 | 852 | 70 | 654 | 425 | 1070 | 55 |
| 61 | 631 | 432 | 73 | 72 | 205 | 625 | 580 | 876 | 70 | 670 | 425 | 1086 | 55 |
All measurements in millimetres unless marked (°) for angles.
