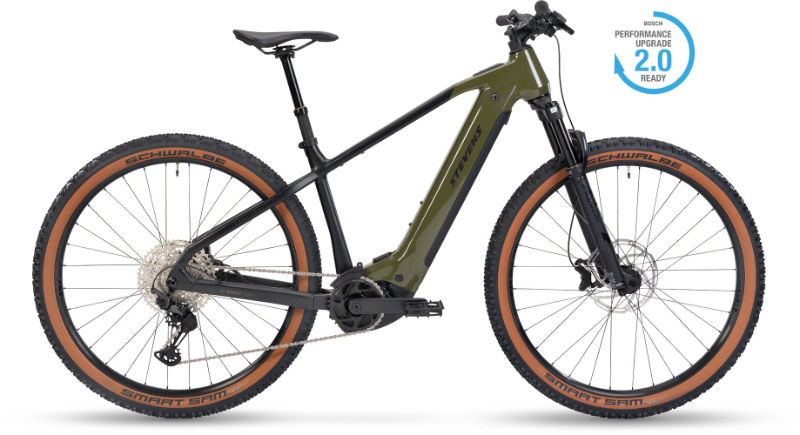

2026 Stevens E-Agnello geometry
Full frame geometry for the 2026 Stevens E-Agnello, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 624.1 | 425 | 75 | 67.5 | 130 | 592.2 | 370 | 747 | 57 | 709.8 | 455 | 1158.9 | 44 |
| 16 | 652.5 | 425 | 75 | 68 | 125 | 600 | 400 | 778 | 70 | 707.5 | 470 | 1172.5 | 44 |
| 18 | 654.9 | 435 | 74.5 | 68.5 | 125 | 616.5 | 440 | 778.8 | 70 | 716.2 | 470 | 1177.5 | 44 |
| 20 | 668.9 | 452 | 74.5 | 68.5 | 140 | 637.4 | 490 | 791.9 | 70 | 738.5 | 470 | 1200 | 44 |
| 22 | 682.8 | 468 | 74.5 | 68.5 | 155 | 663.8 | 545 | 813.5 | 70 | 759.9 | 470 | 1221.5 | 44 |
| 24 | 704 | 487 | 74 | 69 | 175 | 688.9 | 590 | 843.5 | 70 | 780.6 | 470 | 1242.3 | 44 |
All measurements in millimetres unless marked (°) for angles.
