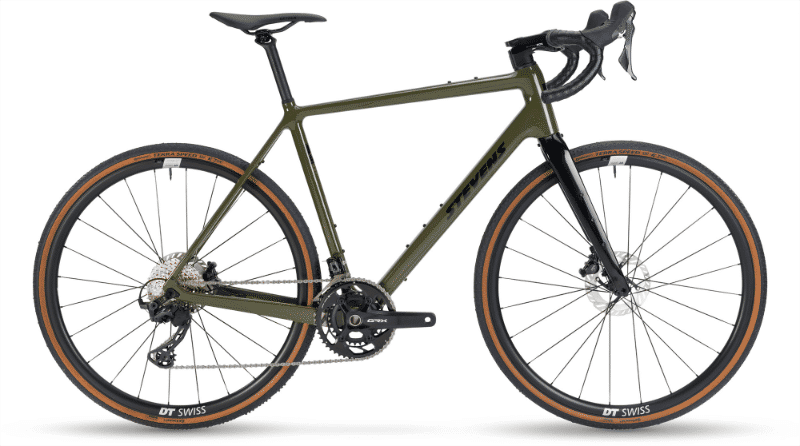

2026 Stevens Camino Pro geometry
Full frame geometry for the 2026 Stevens Camino Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 538 | 380 | 76 | 70 | 115 | 514 | 450 | 751 | 70 | 608 | 440 | 1038 | 50 |
| 51 | 556 | 389 | 74 | 71 | 130 | 548 | 480 | 774 | 70 | 613 | 440 | 1044 | 50 |
| 54 | 577 | 399 | 73 | 71.5 | 150 | 575 | 510 | 800 | 70 | 625 | 440 | 1056 | 50 |
| 56 | 596 | 407 | 73 | 71.5 | 170 | 589 | 540 | 825 | 70 | 639 | 440 | 1070 | 50 |
| 58 | 617 | 416 | 73 | 72 | 190 | 605 | 570 | 850 | 70 | 650 | 440 | 1081 | 50 |
| 61 | 636 | 425 | 73 | 72 | 210 | 619 | 600 | 874 | 70 | 665 | 440 | 1096 | 50 |
All measurements in millimetres unless marked (°) for angles.
