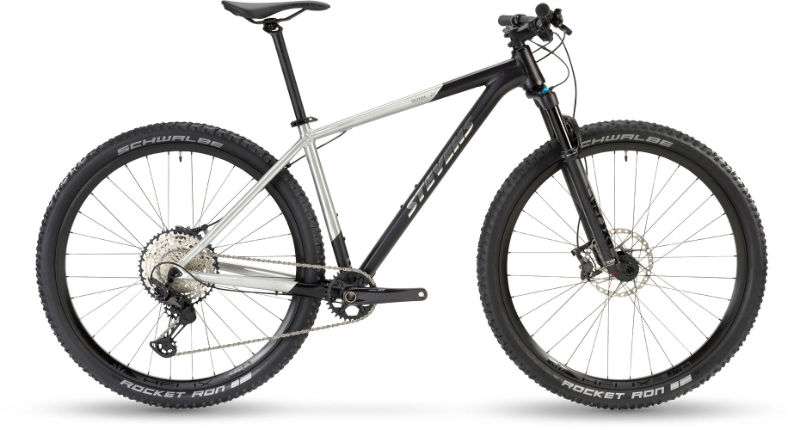

2026 Stevens Colorado 401 geometry
Full frame geometry for the 2026 Stevens Colorado 401, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 562 | 439 | 74.5 | 69 | 95 | 595 | 406 | 732 | 50 | 683 | 425 | 1103 | 42 |
| 18 | 607 | 432 | 74.5 | 70 | 95 | 600 | 457 | 782 | 70 | 677 | 440 | 1107 | 43 |
| 20 | 621 | 448 | 74.5 | 70 | 110 | 620 | 508 | 817 | 70 | 697 | 440 | 1128 | 43 |
| 22 | 630 | 465 | 74.5 | 70 | 120 | 640 | 540 | 839 | 70 | 718 | 440 | 1149 | 43 |
| 24 | 654 | 469 | 74.5 | 70 | 145 | 650 | 609 | 889 | 70 | 730 | 440 | 1161 | 43 |
All measurements in millimetres unless marked (°) for angles.
