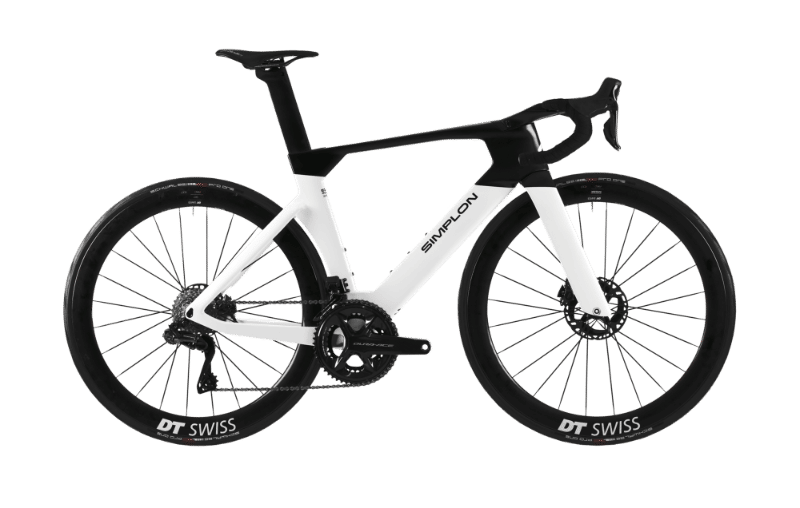

2026 Simplon Pride geometry
Full frame geometry for the 2026 Simplon Pride, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 505 | 378 | 73.5 | 71.3 | 95 | 530 | 452 | 730 | 75 | 403 | 976 | 45 |
| 49 | 522 | 387 | 73.5 | 71.3 | 110 | 543 | 465 | 744 | 75 | 403 | 990 | 45 |
| 52 | 535 | 397 | 73.5 | 73 | 117 | 558 | 492 | 764 | 75 | 403 | 990 | 45 |
| 55 | 555 | 402 | 73.5 | 73 | 138 | 568 | 512 | 783 | 75 | 403 | 1000 | 45 |
| 58 | 573 | 407 | 73.5 | 73 | 160 | 584 | 532 | 801 | 75 | 403 | 1011 | 45 |
| 61 | 593 | 414 | 73.5 | 73 | 180 | 595 | 550 | 820 | 75 | 403 | 1028 | 45 |
All measurements in millimetres unless marked (°) for angles.
